Purevision CPV5W Wide Wood Burning / Multi Fuel Stove
CPV5 / CPV5W Multi-Fuel Stove
The CPV5 and CPV5W multi-fuel stoves combine traditional cast-iron styling with advanced combustion technology, offering efficient, controllable heat with a strong visual presence. Designed and manufactured in the UK by Charlton & Jenrick, these stoves are well suited to customers looking for classic character alongside modern performance and environmental compliance.
Key Features & Specifications
| Specification | Details |
|---|---|
| Nominal Heat Output | 5kW |
| Heat Output Category | Medium (5kW – 7.9kW) |
| Efficiency | 80% |
| Energy Rating | A |
| Fuel Type | Wood & Smokeless Multi-fuel |
| DEFRA Approved (Smoke Exempt) | Yes |
| EcoDesign Ready | Yes |
| Flue Diameter | 127mm (5") |
| Flue Exit | Top or Rear |
| Construction | Cast Iron & Steel |
| Firebox | Large panoramic viewing window |
| Colour | Black |
| Style | Traditional |
| Placement | Freestanding |

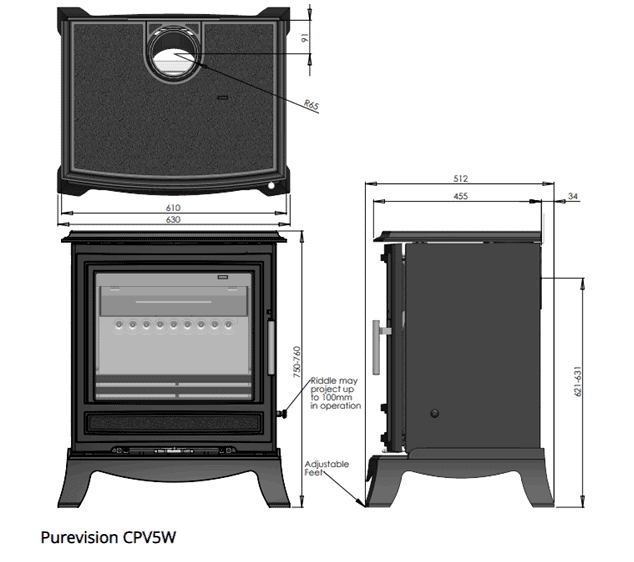

| Dimensions (H × W × D) | 75 × 61 × 45.5 cm |
| Brand | pure vision |
| Weight | 80kg |
| Country of Origin | United Kingdom |
| Warranty | 12 Years |
Real-World Benefits
With a 5kW nominal output, the CPV5 range is ideal for standard-sized living spaces, delivering comfortable warmth without excessive heat. In many homes, this output allows installation without additional air vents, subject to a property assessment.

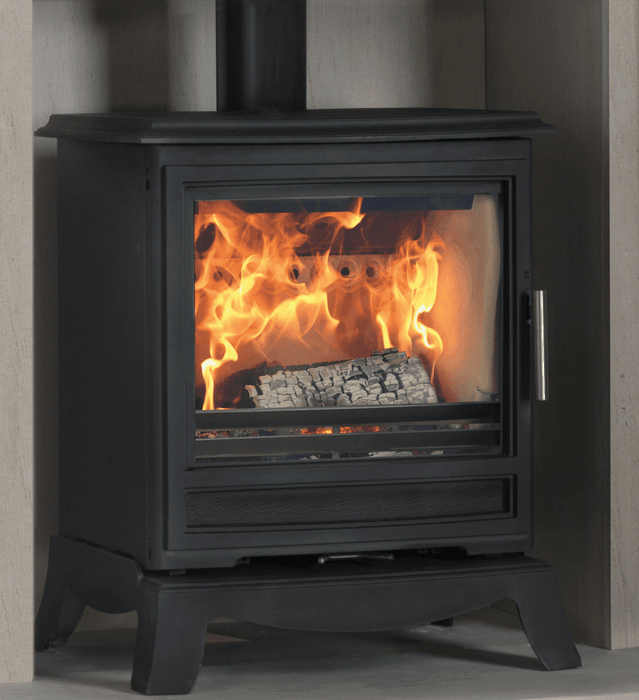

The standout feature is the large panoramic glass window, which provides an excellent view of the fire and makes the stove a natural focal point. A powerful airwash system helps keep the glass cleaner for longer, reducing day-to-day maintenance while maintaining a clear flame picture.
The CPV5W model offers a wider firebox and viewing area, creating a broader flame display and slightly greater flexibility for larger rooms or more open-plan spaces.
Full multi-fuel capability comes as standard, allowing the stove to burn wood or approved smokeless fuels without additional kits, giving flexibility over fuel choice.
Installation & Compliance Guidance
Both models are DEFRA-approved, making them suitable for use in smoke control areas, and are fully EcoDesign compliant, meeting current UK efficiency and emissions standards.
Practical installation features include:
-
Adjustable base feet for accurate levelling
-
Twin firebox construction with heat shield to help reduce clearances to combustibles
-
Optional external air kit, allowing direct connection to outside air. In some newer properties, this may reduce or remove the need for fixed internal ventilation, subject to assessment and Building Regulations
Installation should always be carried out by a qualified professional. Our team can advise on suitability, clearances, and flue arrangements before purchase.
